1. Structure, size and appearance
Cleaning sheet structure

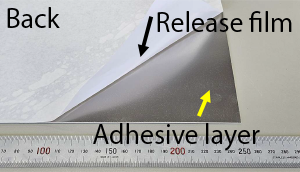

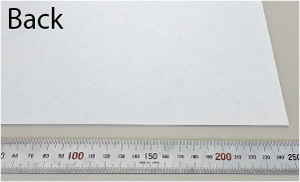

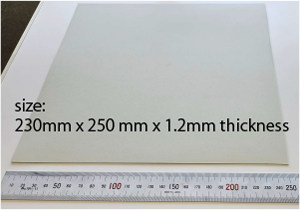

Cleaning sheet size and appearance
2. Features and performance advantages over other companies
| Features and performance advantages | Situation Features and performance advantages at other companies | ||
|---|---|---|---|
|
1) The sheet has a long lifespan. 2) High abrasiveness; Even with a soft gel, the abrasive gel is held in place by the melamine sponge. 3) The gel is molded using a precision mold, so the surface is very flat. |
1) The probe insertion hole returns to its original position, so the seat has a long life. Insert 2-3 times at the same position with one cleaning. Can be cleaned at least 5 times at the same position. |
MIPOX |
*It has abrasive properties, but the abrasive grains on the surface make the probe tip round, making it difficult to break the oxide film on the pad. *It peels off the gold plating. *The flatness of the cleaning surface is too poor.(It deteriorates the tip planarity.) |
| ITX |
The gel is hard and the probe insertion hole does not return to its original position, so the sheet has a short lifespan. Abrasives are only held in place by the gel, and they easily escape from the probe, so the abrasiveness is low. making the gel harder increases the abrasiveness but shortens the sheet's lifespan. |
||
| 2) Be sure to remove debris. | Gel Pak | ||
| 3) It thoroughly removes debris but protects the base metal. (Gold plating will not peel off.) | |||
